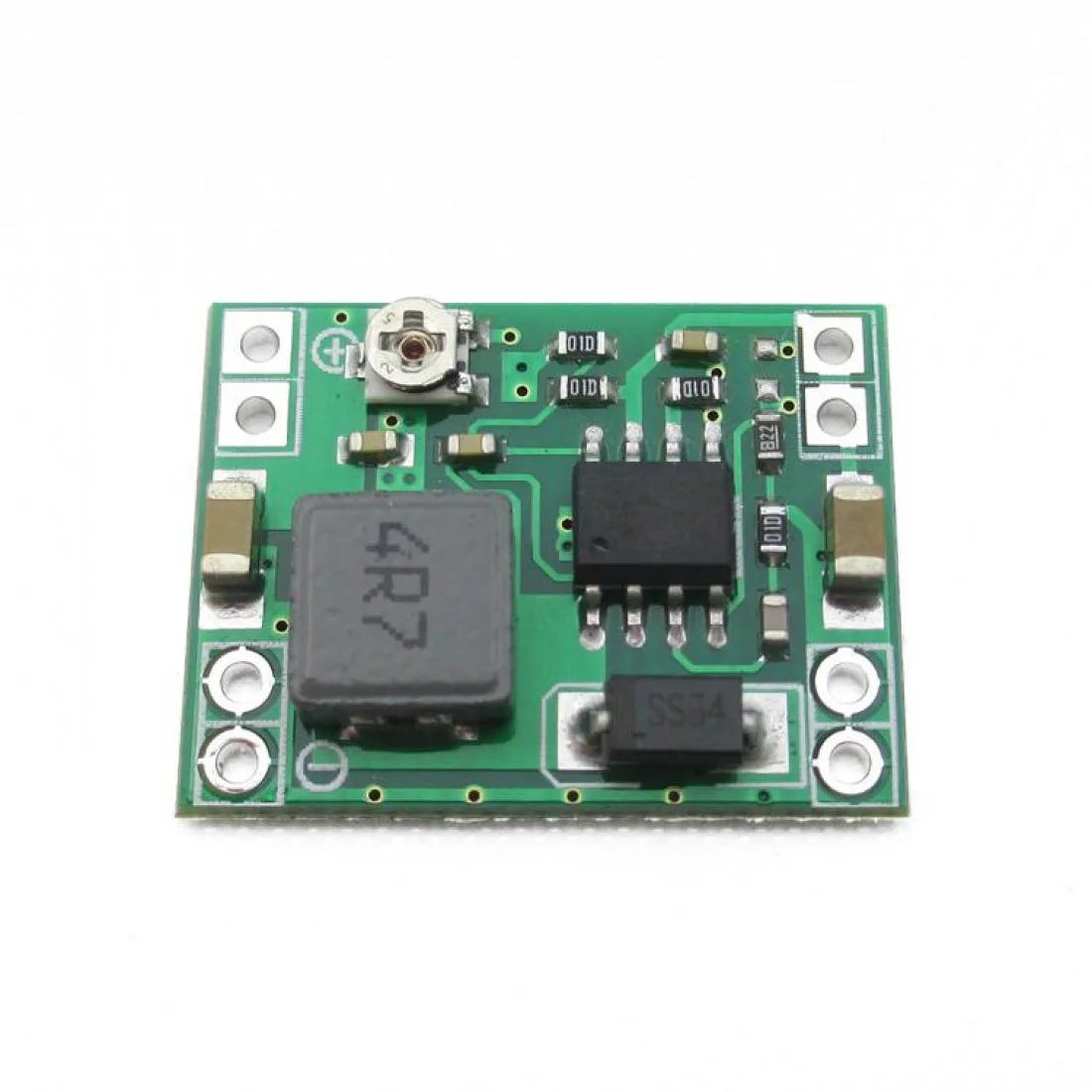

DC-DC MP1584EN 3A Step Down Power Supply Module

1. Model Name: Ultra-small DC-DC step-down module
2. Input voltage: 4.5-28V
3. Output Voltage: 0.8-20V
4. Output current: rated current 3A(MAX).
5. Switching Frequency: 1.5MHz (highest), typical 1MHz
6. Output Ripple: < 30mV
7. Efficiency: 96% (max)
8. Operating temperature: -40 Celsius to +85 Celsius
9. Size: 22mm*17mm*4mm
